In this tutorial, we demonstrate the high-level interface of the LS-Prior package through it's builder component. The tutorial focuses on brevity, and showcasing the prior setup on a non-standard mesh. For a more thorough introduction to the internals and mathematical background of LS-Prior, we refer to the components tutorial.

Mesh Setup

We showcase the construction of a prior distribution on a 2D embedded surface, namely the left-atrial manifold (the upper left chamber of the human heart). The mesh we utilize is stored in msh format, which can easily be converted to an MPI-parallel DOLFINx mesh:

import dolfinx as dlx
import matplotlib.pyplot as plt
import numpy as np

mpi_communicator = MPI.COMM_WORLD
mesh, *_ = dlx.io.gmshio.read_from_msh("left_atrium_surface.msh", mpi_communicator, rank=0, gdim=3)

Builder Configuration

Given our DOLFINx mesh, we construct a Prior object with LS-Prior's builder component. As of now, we support building Bilaplace priors (see the components tutorial for an explanation). To configure the builder, we set up a BilaplacianPriorSettings data class. As mandatory settings, the configuration class requires the mesh, a mean vector defined on the mesh's vertices, and the parameters \(\tau\) and \(\kappa\) of the prior:

prior_settings = builder.BilaplacianPriorSettings(
    mesh=mesh,
    mean_vector=np.zeros(mesh.geometry.x.shape[0]),
    kappa=0.5,
    tau=1,
)

The prior can be configured further, see the class documentation and components) tutorial for more details.

Prior Generation

With our configuration, we can set up a BilaplacianPriorBuilder and invoke its build method to generate a Prior object:

prior_builder = builder.BilaplacianPriorBuilder(prior_settings)
bilaplace_prior = prior_builder.build()

Prior Functionality

Like in the components tutorial, we showcase the functionality of the prior:

num_vertices = mesh.geometry.x.shape[0]
test_vector_1 = np.ones(num_vertices)
test_vector_2 = 2 * np.ones(num_vertices)
test_vector_3 = 3 * np.ones(num_vertices)

cost = bilaplace_prior.evaluate_cost(test_vector_1)
grad = bilaplace_prior.evaluate_gradient(test_vector_2)
hvp = bilaplace_prior.evaluate_hessian_vector_product(test_vector_3)
sample = bilaplace_prior.generate_sample()

We can further visualize the sample over the atrial manifold:

import pyvista as pv

vertices = mesh.geometry.x
simplices = mesh.geometry.dofmap

camera_position = [
    (92.7033800655023, -107.54971248826202, -146.9233989237418),
    (5.789453506469723, -8.405534744262697, 10.9196138381958),
    (0.64544246900107, 0.7545534378669008, -0.11854589243429736),
]
pv_mesh = pv.PolyData.from_regular_faces(vertices, simplices)
pv_mesh.point_data["sample"] = sample
plotter = pv.Plotter()
plotter.add_mesh(pv_mesh, scalars="sample", cmap="viridis", show_edges=False, show_scalar_bar=True)
plotter.show(window_size=[800, 600], cpos=camera_position)
plotter.close()

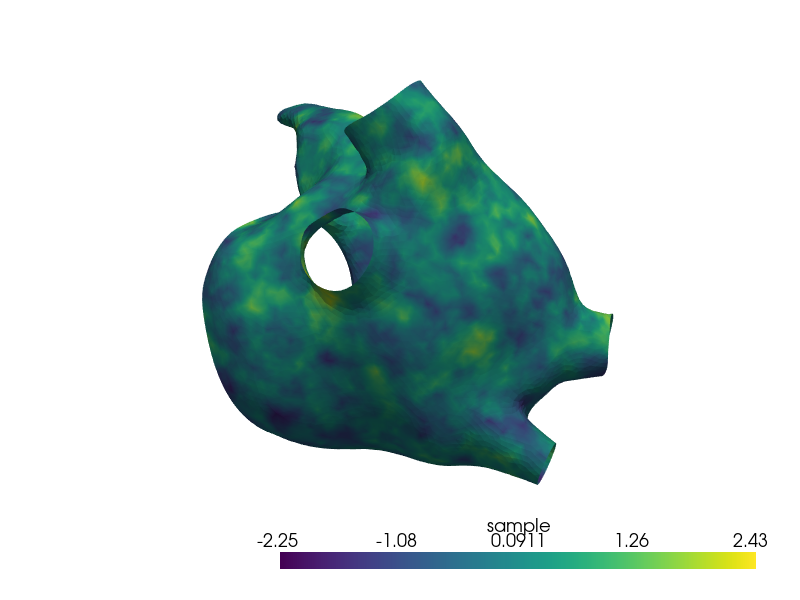

Sample
