Component Interface¶

The goal of this tutorial is to demonstrate the highly modular component interface of the LS-Prior package. This low-level interface is not the most convenient way to construct prior distributions, but it is extremely flexible with respect to user-defined extensions. In addition, it helps understanding the underlying structure of the package, and the mathematical approach it is based on.

Mesh Setup¶

LS-Prior deals with the generation of prior distributions for function space objects, i.e. functions defined on some domain \(\Omega\), which might either be Euclidean, or an embedded manifold, with topological dimension \(d\). The most important input for the construction of a prior distribution is therefore a computational mesh resembling the discretization of \(\Omega\). LS-Prior requires input meshes in DOLFINx format. Such meshes can easily be obtained from other common mesh formats, such as GMSH.

We set up a simple square mesh with DOLFINx for now:

import dolfinx as dlx
import numpy as np
from mpi4py import MPI

mesh = dlx.mesh.create_rectangle(
    MPI.COMM_WORLD,
    [np.array([0, 0]), np.array([1, 1])],
    [100, 100],
    dlx.mesh.CellType.triangle,
)

Note that we have also passed an MPI communicator to the mesh. This communicator will be utilized by all components of LS-Prior for MPI-parallel computations. Furthermore, while internal computations are performed on some finite element space (to be defined), the interface of prior objects work entirely via vectors defined on the vertices of the provided mesh. This makes it easy to interface prior objects with other components in an inverse problem workflow, without relying on the specific finite element representation.

FEM Matrix and Converter Setup¶

On the base level of the prior construction, we define FEM-specific data structures. Recall that we construct prior distributions whose realizations \(m\) satisfy, on the domain \(\Omega\), SPDEs of the form

\[ \begin{equation*} \tau(\kappa^2-\Delta)^{\frac{\nu}{2}}m(x) = W(x),\quad x\in\Omega \end{equation*} \]

where \(\kappa,\tau > 0\) are parameters determining the variance and correlation properties of the realizations, \(\nu > \frac{d}{2}\) determines their regularity, and \(W\) is spatial white noise on \(\Omega\). In LS-Prior, we can equip the SPDE either with homogneous Neumann boundary conditions,

\[ \begin{equation*} \nabla m(x)\cdot\mathbf{n}(x) = 0,\quad x\in\partial\Omega, \end{equation*} \]

or Robin boundary conditions of the form

\[ \begin{equation*} \nabla m(x)\cdot\mathbf{n}(x) + \beta m(x) = 0,\quad x\in\partial\Omega, \end{equation*} \]

where \(\mathbf{n}\) is the outward unit normal vector of \(\partial\Omega\), and \(\beta\) is a scalar tuning coefficient for the Robin condition.

For simplicity, we assume that \(\nu=2\), corresponding to the common Bi-Laplace prior scenario. We can now (informally, as white noise \(W\) is actually too irregular) write the SPDE in weak form against suitable test functions \(\varphi\),

\[ \begin{equation*} \kappa^2\tau(m,\varphi)_{L^2(\Omega)} + \tau (\nabla m,\nabla\varphi)_{L^2(\Omega)} + \beta(m,\varphi)_{L^2(\partial\Omega)} = (W,\varphi)_{L^2(\Omega)}. \end{equation*} \]

To recover Neumann boundary conditions, we can simply set \(\beta=0\). In particular, we are interested in the left-hand-side operator \(\mathcal{A}\) defined via

\[ \begin{equation*} \mathcal{A}m = \kappa^2\tau(m,\varphi)_{L^2(\Omega)} + \tau (\nabla m,\nabla\varphi)_{L^2(\Omega)} + \beta(m,\varphi)_{L^2(\partial\Omega)}, \end{equation*} \]

and the "mass matrix operator" \(\mathcal{M}\) defined via

\[ \begin{equation*} \mathcal{M}m = (m,\varphi)_{L^2(\Omega)} \end{equation*} \]

These operators can be discretized on some finite-dimensional subspace \(V_h\) according to standard finite element procedure. We do this with DOLFINx by first calling the generate_forms method,

from ls_prior import fem

kappa, tau = 10.0, 0.1
function_space = dlx.fem.functionspace(mesh, ("Lagrange", 2))
mass_matrix_form, spde_matrix_form = fem.generate_forms(function_space, kappa, tau)

Given a parametrization and FEM function space, this method returns UFL forms corresponding to \(\mathcal{M}\) and \(\mathcal{A}\). Again using DOLFINx, we assemble these forms into sparse PETSc matrices \(\mathbf{M}\) and \(\mathbf{A}\),

from dolfinx.fem import petsc

mass_matrix = petsc.assemble_matrix(dlx.fem.form(mass_matrix_form))
spde_matrix = petsc.assemble_matrix(dlx.fem.form(spde_matrix_form))
mass_matrix.assemble()
spde_matrix.assemble()

Info

We have assembled the matrices \(\mathbf M\) and \(\mathbf A\) under the premise that \(\nu=2\). These matrices can be used, however, as building blocks for fields of other orders \(\nu\) as well.

To generate samples from a prior distribution, we will further require a factorization of \(\mathbf{M}\), i.e. a matrix \(\widehat{\mathbf{M}}\) such that \(\widehat{\mathbf{M}}\widehat{\mathbf{M}}^T\). Such a factorization can be constructed efficiently and in sparse form, exploiting the finite element assembly procedure. LS-Prior provides the functionality for the construction of a factorization for FEM matrices in the FEMMatrixFactorizationAssembler class:

mass_matrix_factorization = fem.FEMMatrixFactorizationAssembler(
    mesh, function_space, mass_matrix_form
)
block_diagonal_matrix, dof_map_matrix = mass_matrix_factorization.assemble()
dof_map_matrix.transpose()

Given the mesh, the FE function space, and a weak form, the factorization assembler generates two sparse PETSc matrices \(\widehat{\mathbf{M}}_e\) and \(\mathbf{L}\), such that \(\widehat{\mathbf{M}} = \mathbf{L}^T\widehat{\mathbf{M}}_e\). For more detailed information on these matrices, we refer to the class documentation.

Lastly, we initialize a FEMConverter object,

converter = fem.FEMConverter(function_space)

The converter will take care of the conversion between vectors defined on mesh vertices, and the internal representation on the function space DoFs.

Basic Components¶

Given the underlying FEM matrices, we can start climbing up the LS-Prior component hierarchy. All components we will use to construct the prior adhere to the PETScComponent interface. This uniform interface allows for the arbitrary composition of PETSc components, resulting in new such components.

In a first step, we initialize the components that resemble the action of the FEM matrices, as well as their inverses on vectors of matching size The matrices \(\mathbf{M}\), \(\mathbf{A}\), \(\widehat{\mathbf{M}}_e\), and \(\mathbf{L}\) are used to initialize Matrix components,

mass_matrix_component = components.Matrix(mass_matrix)
spde_matrix_component = components.Matrix(spde_matrix)
block_diagonal_matrix_component = components.Matrix(block_diagonal_matrix)
dof_map_matrix_component = components.Matrix(dof_map_matrix)

These are just thin wrappers around the standard PETSc matrix interface.

Next, we represent the action of the inverse matrices \(\mathbf{M}^{-1}\) and \(\mathbf{A}^{-1}\) via InverseMatrixSolver components. Under the hood, these components use PETSc's Krylov subspace solvers and preconditioners for matrix-free inversion of the provided input matrices. Next to the system matrix to invert, these components have to be initialized with an InverseMatrixSolverSettings data class for configuration of the solver and preconditioner.

Here we use a standard CG solver with Jacobi preconditioning for the \(\mathbf{M}\)-solver, and AMG preconditiong for the \(\mathbf{A}\)-solver,

from petsc4py import PETSc

cg_solver_settings = components.InverseMatrixSolverSettings(
    solver_type=PETSc.KSP.Type.CG,
    preconditioner_type=PETSc.PC.Type.JACOBI,
    relative_tolerance=1e-6,
    absolute_tolerance=1e-8,
    max_num_iterations=10000,
)

amg_solver_settings = components.InverseMatrixSolverSettings(
    solver_type=PETSc.KSP.Type.CG,
    preconditioner_type=PETSc.PC.Type.GAMG,
    relative_tolerance=1e-6,
    absolute_tolerance=1e-8,
    max_num_iterations=10000,
)

mass_matrix_inverse_component = components.InverseMatrixSolver(cg_solver_settings, mass_matrix)
spde_matrix_inverse_component = components.InverseMatrixSolver(amg_solver_settings, spde_matrix)

Composition of Components¶

As mentioned earlier, we can combine arbitrary PETScComponents into new ones, relying on the PETScComponentComposition class. Objects of this type simply chain calls to all sub-components they comprise, in the order they have been provided. This means we could chain covariance operators for arbitrary, also fractional order, e.g. by using a spectral decomposition algorithm on the basic components, and wrapping it in another PETScComponents.

We again focus on the case \(\nu=2\), i.e. the Bilaplace prior. The discrete covariance and precision matrices are then given as

\[ \begin{gather*} \mathbf{C} = \mathbf{A}^{-1}\mathbf{M}\mathbf{A}^{-1} \\ \mathbf{C}^{-1} = \mathbf{A}\mathbf{M}^{-1}\mathbf{A} \end{gather*} \]

The factorization of the covariance matrix is given accordingly,

\[ \begin{equation*} \widehat{\mathbf{C}} = \mathbf{A}^{-1}\widehat{\mathbf{M}} = \mathbf{A}^{-1}\mathbf{L}^T\widehat{\mathbf{M}}_e. \end{equation*} \]

The action of these component is conveniently wrapped as:

precision_operator = components.PETScComponentComposition(
    spde_matrix_component, mass_matrix_inverse_component, spde_matrix_component
)
covariance_operator = components.PETScComponentComposition(
    spde_matrix_inverse_component, mass_matrix_component, spde_matrix_inverse_component
)
sampling_factor = components.PETScComponentComposition(
    block_diagonal_matrix_component, dof_map_matrix_component, spde_matrix_inverse_component
)

Numpy Interface¶

In a last step, we wrap the covariance, precision, and sampling factor by InterfaceComponents. The interface does not add any functionality, but is merely for convenience . It allows us to transition from a more indirect, reference-based PETSc interface to a more explicit Numpy interface (so we don't have to worry about overwriting stuff internally).

precision_operator_interface = components.InterfaceComponent(precision_operator)
covariance_operator_interface = components.InterfaceComponent(covariance_operator)
sampling_factor_interface = components.InterfaceComponent(sampling_factor)

Prior Initialization¶

We can now create a Prior object from the assembled interfaces. In addition, we need to provide a mean vector \(\overline{\mathbf{m}}\) in form of a vertex-based numpy array,

mean_vector = np.zeros(mesh.geometry.x.shape[0], dtype=np.float64)

our FEMConverter object, and a seed for the prior's internal RNG. In total, the prior initialization is as simply as

bilaplace_prior = prior.Prior(
    mean_vector,
    precision_operator_interface,
    covariance_operator_interface,
    sampling_factor_interface,
    converter,
    seed=0,
)

Prior Functionality¶

To conclude this tutorial, let us briefly test the functionality provided by Prior objects.

As of now, the interface provides the following methods:

evaluate_cost: Compute the negative "log-probability" (this term is a misnomer in the function space setting) for a given state \(\mathbf{m}\), corresponding to a cost in the optimization context, i.e. \(\frac{1}{2}(\mathbf{m}-\overline{\mathbf{m}})^T\mathbf{C}^{-1}(\mathbf{m}-\overline{\mathbf{m}})\).
evaluate_gradient: Compute the derivative of the cost with respect to the state \(\mathbf{m}\), i.e. \(\mathbf{C}^{-1}(\mathbf{m}-\overline{\mathbf{m}})\).
evaluate_hessian_vector_product: Evaluate the Hessian vector product in a direction \(\widehat{\mathbf{m}}\), i.e. \(\mathbf{C}^{-1}\widehat{\mathbf{m}}\).
generate_sample: Generate a sample \(\widetilde{\mathbf{m}}\) from the prior distribution.

rng = np.random.default_rng(0)

test_vector_1 = rng.random(mean_vector.shape)
test_vector_2 = 2 * rng.random(mean_vector.shape)
test_vector_3 = 3 * rng.random(mean_vector.shape)

cost = bilaplace_prior.evaluate_cost(test_vector_1)
grad = bilaplace_prior.evaluate_gradient(test_vector_2)
hvp = bilaplace_prior.evaluate_hessian_vector_product(test_vector_3)
sample = bilaplace_prior.generate_sample()

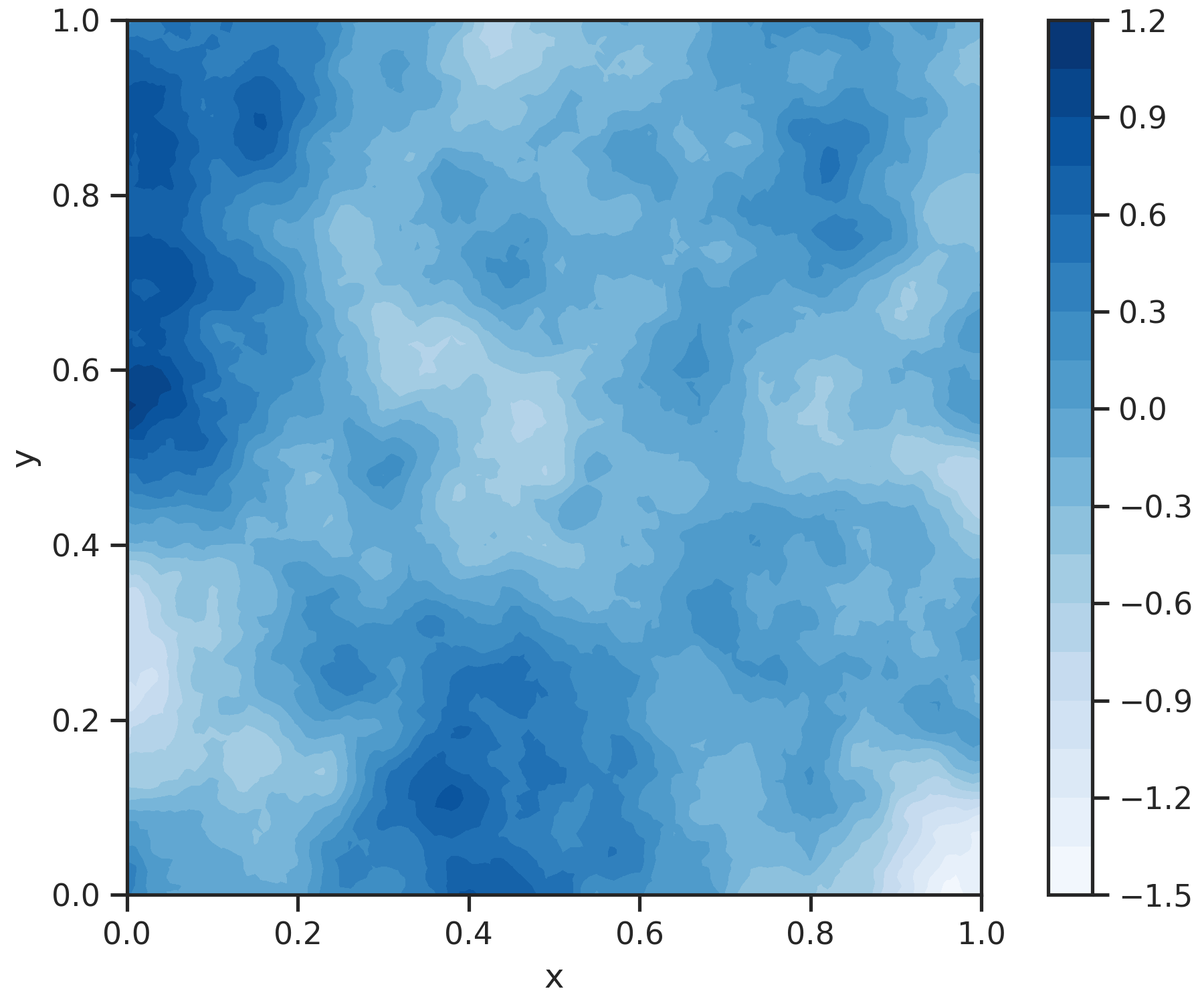

Let us also plot the sample:

import matplotlib.pyplot as plt

vertices = mesh.geometry.x
simplices = mesh.geometry.dofmap

fig, ax = plt.subplots(figsize=(6, 5), layout="constrained")
contour_plot = ax.tricontourf(vertices[:, 0], vertices[:, 1], sample, levels=20, cmap="Blues")
plt.colorbar(contour_plot)
