Tutorial

Overview of MTMLDA

MTMLDA is a modular, low-level library, whose functionality is implemented in the core subpackage. Its main component is the MTMLDASampler sampler object, which requires, next to MCMC-specific components, a list of callables resembling the model hierarchy (log densities). To accommodate different scenarios, we provide the user with the possibility to implement an object with the interface of ApplicationBuilder in the components subpackage. In addition, the components module provides interfaces and exemplary implementations of components that are typically required to set up a hierarchy of Bayesian posterior densities.

The builder can then be used, in combination with a settings.py file, to set up a ParallelRunner object in the run subpackage. This object assembles the model hierarchy and sampler. Subsequently, it can run multiple MLDA chains in parallel, each of which is potentially parallelized though prefetching. All parallelization is effectively handled through the asynchronous calls to the hierarchy of models. To process these request effectively, we rely on the UM-Bridge framework, which can dispatch the calls to any sort of external framework, up to HPC architectures. The results of an mtmlda run comprise detailed logfiles (run and debug), as well as the generated chains, and potentially the Markov trees generated during the sampling. Data and trees can be analyzed by the Postprocessor in the run module. All mentioned components have extensive in-code documentation, which we refer the reader to for more detailed information on their usage and implementation.

Quickstart

In the following, we focus on the execution of the example application example_03. The model-side in this example constitutes a hierarchy of 2D "banana" densities. Based on a precision coefficient \(c_i\), we write for the parameters \(\theta_1,\theta_2\in\mathbb{R}\) of the \(i\)-th member of the density hierarchy

\[ \begin{equation} \pi_i(\theta_1, \theta_2) \propto \exp \Big[ -\textstyle \frac{1}{2}c_i\big(20(\theta_1^2 - 2\theta_2)^2 + 2 (\theta_2 - \frac{1}{4})^4\big)^2 \Big]. \end{equation} \]

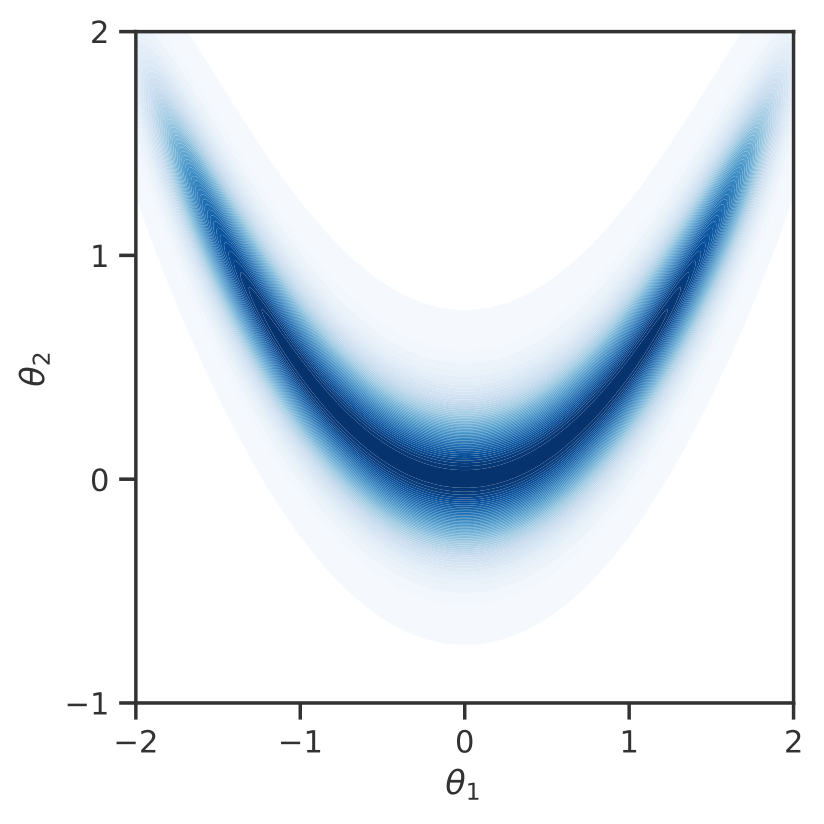

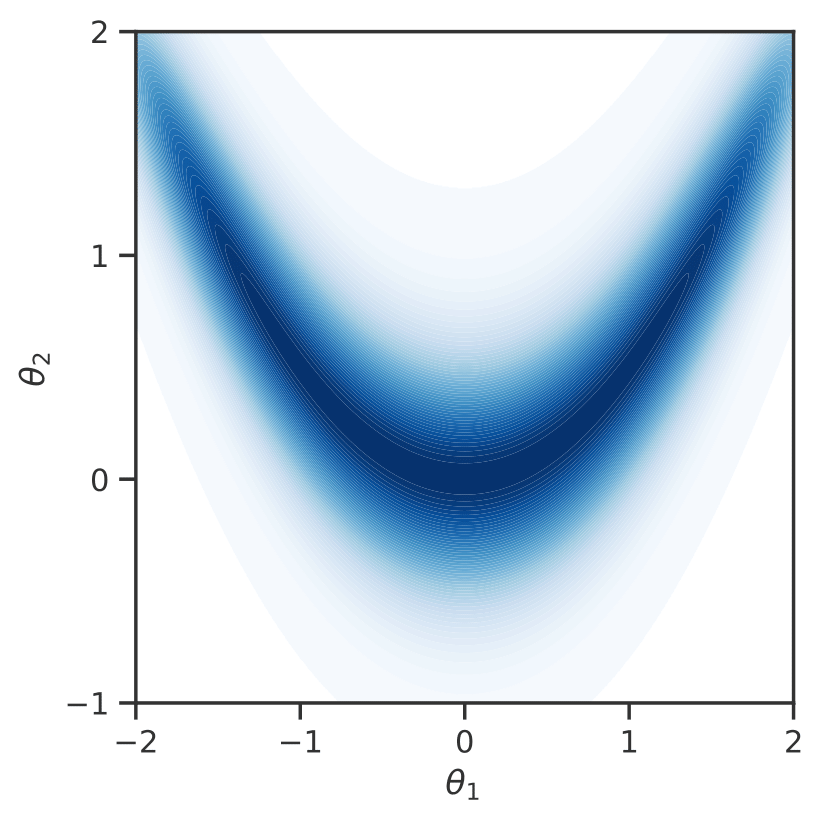

We construct a hierarchy of models with precision parameters \(c_i=\{0.1, 0.3, 1.0\}\), as shown below.

Any application to be processed by the standard workflow has to comprise a settings.pyand a builder.py file. The settings file is the unified entry point for the configuration of the models, the builder and the sampler. It implements data classes that serve as input settings for the respective components. To execute the code, cd into the examples directory with mtmlda installed.

For the MCMC client to work, we need to start a server-side model hierarchy to be called. This is implemented as an UMBridge server in simulation_model.py, execute in a separate terminal session with

python example_03/simulation_model.py

To then execute a sampling application, simply invoke the run.py script with the application direction as argument,

python run.py -app example_03

The run script sets up a parallel runner for the execution and conducts the MLDA run. Its output comprises a number of log files, along with the produced MCMC chains in npy format. Optionally, the sampler produces Markov trees and RNG states can be saved as dot and pkl files, respectively.

Subsequently, you can analysize and visualize results with

python postprocessing.py -app example_03

This produces a number of plots, and optionally renders the generated Markov trees.

Warning

Rendering trees is expensive, only perform this on a small number of dot files.

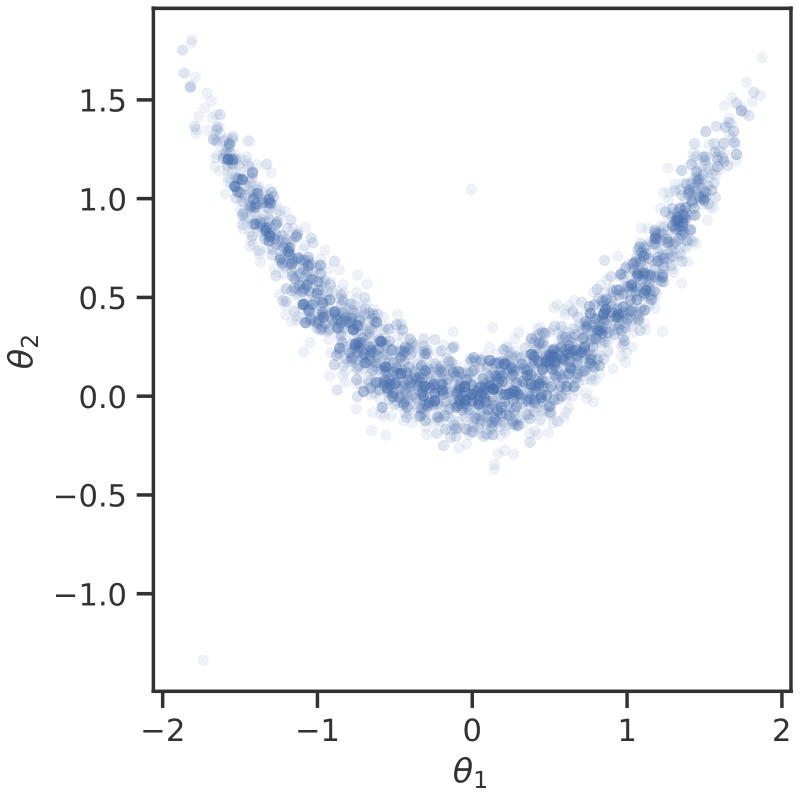

Firstly, we can inspect the resulting samples:

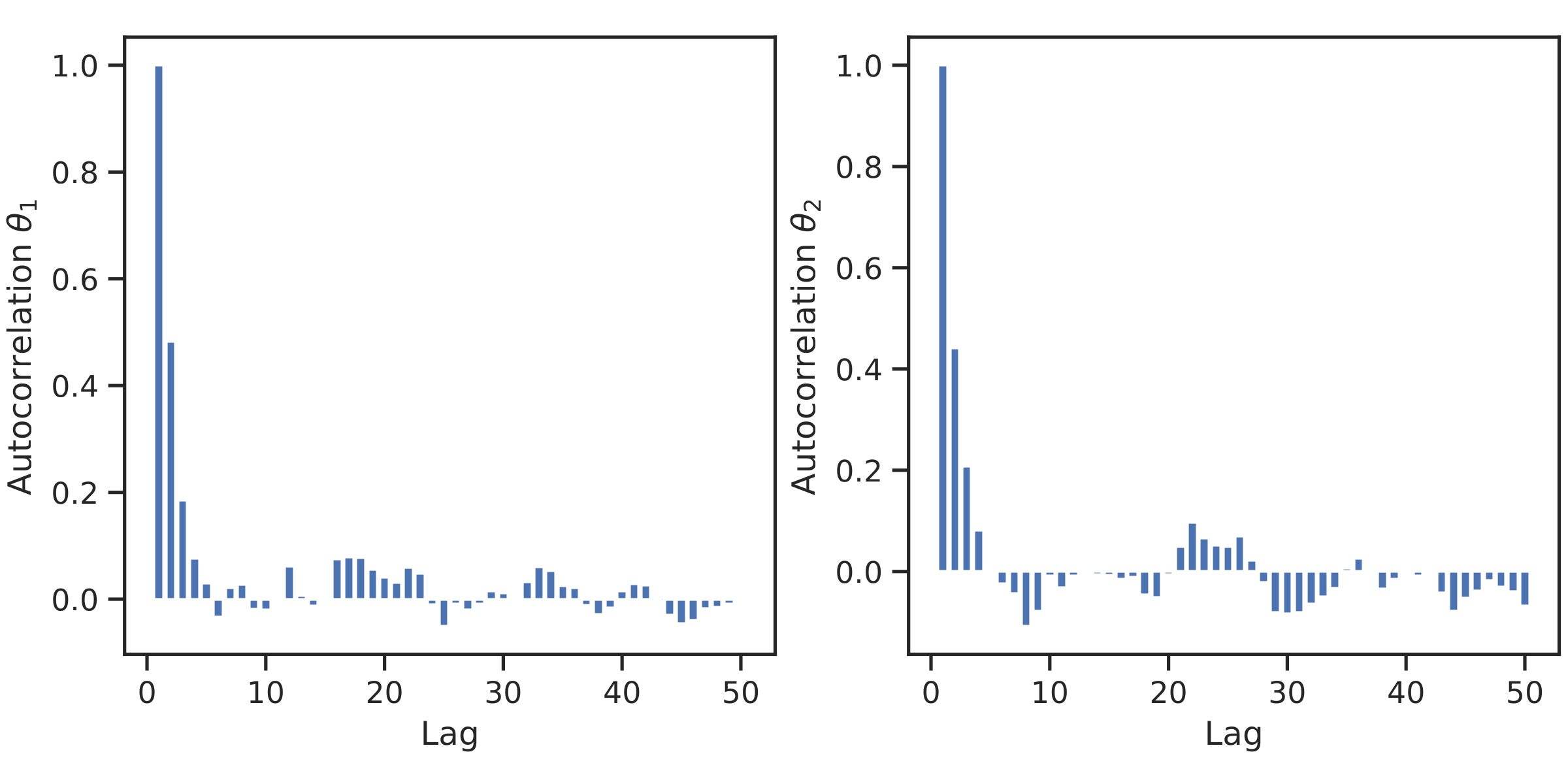

The MLDA sampler significantly reduces autocorrelation between samples, as can be seen here:

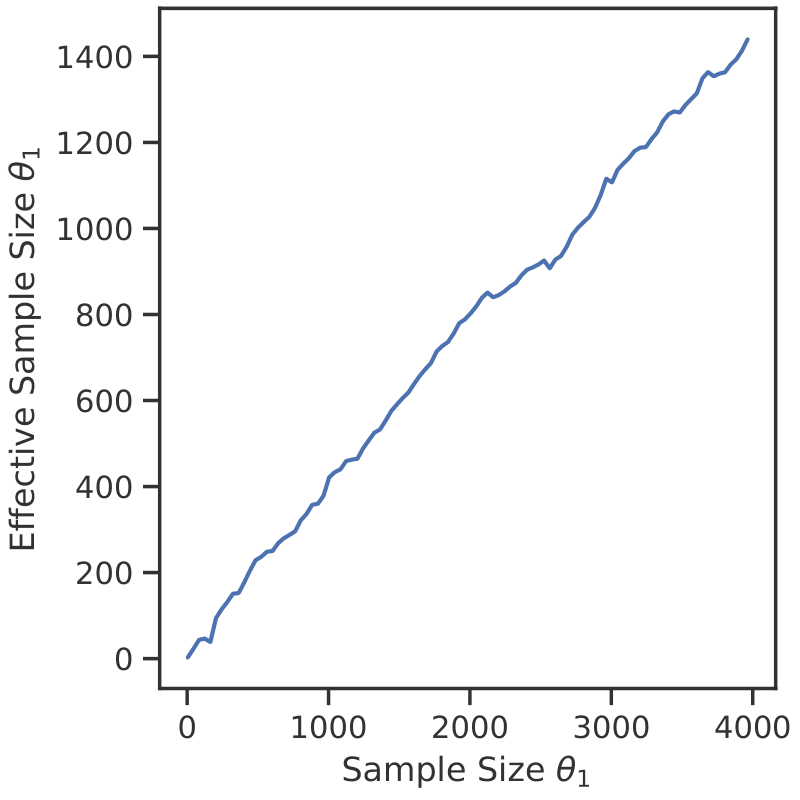

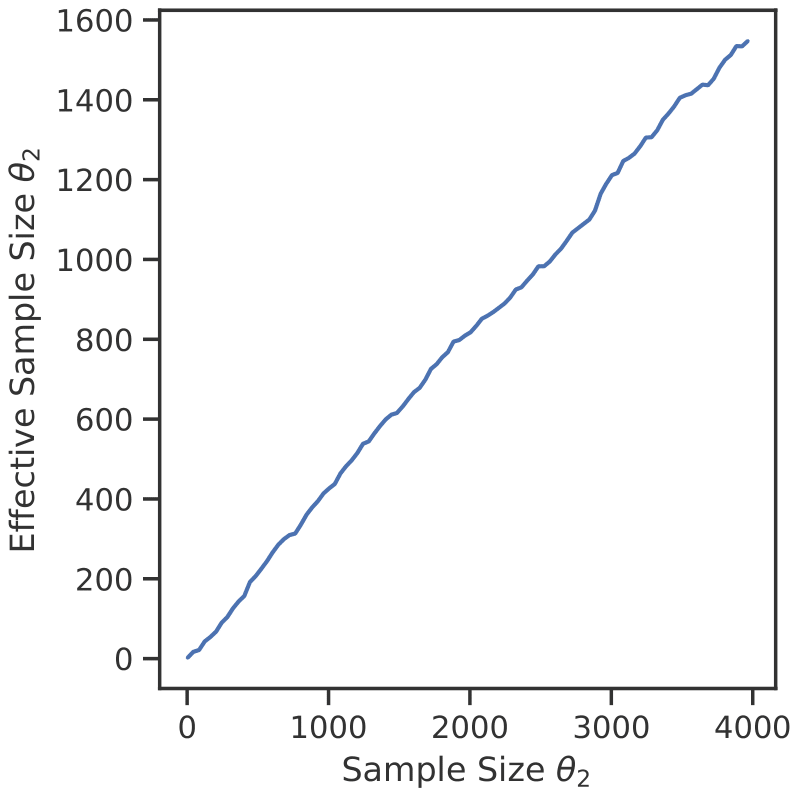

This goes along with a drastically increased effective sample size:

Configuration

In this section, we discuss in more detail the actual settings specified in settings.py, for the example application example_03.

Info

Several settings may be set and/or modified by the parallel run wrapper, depending on the index of the parallel chain they are used for.

MTMLDA Algorithm configuration

The first block of settings is identical for all applications, it comprises the settings for the MTMLDA algorithm.

ParallelRunSettings	Configures the parallel runner wrapper
num_chains	Determines the number of parallel MLDA chains to sample
chain_save_path	Indicates the directory where to store the resulting samples in npy file format
chain_load_path	Can point to existing samples for re-initialization of a sampling run
rng_state_save_path	Can be set to store the numpy RNGs used during sampling in pkl format
rng_state_load_path	Can fetch those RNGs for re-initialization
overwrite_chains	Indicates whether overwriting existing chain data is permitted
overwrite_rng_states	Indicates the same for the RNGs

SamplerSetupSettings	Configures the initialization of the MLDA sampler
num_levels	Indicates the depth of the multilevel model hierarchy
subsampling_rates	Determines the length of subchains on respective levels, from coarse to fine, has to be of length num_levels
max_tree_height	Is a technical setting, restricting the Markov tree in the algorithm to a maximum depth. This depth should usually not be reached.
underflow_threshold	Is the value for the obtained log densities below which the corresponding density is treated as zero. The threshold is implemented for numerical stability.
rng_seed_mltree	Is the seed of the RNG that is used for the uniform numbers for comparison in accept/reject steps. Every new node in a Markov tree is equipped with such a random number.
rng_seed_node_init	Is the seed of the RNG used for initialization of the first node in the Markov tree. The RNG samples an initial state, only necessary if such a state is not provided (see SamplerRunSettings)
mltree_path	Indicates where to store exported Markov trees, if wanted

SamplerRunSettings	configures the MLDA run for an initialized sampler
num_samples	Denotes the number of fine-level samples to generate
initial_state	Defines the initial parameter value in the chain
num_threads	Is the number of parallel workers for prefetching
print_interval	Determines the stride on samples after which info is sent to the logger

LoggerSettings	configures the MTMLDA logger
do_printing	Determines if the run logger info is printed to console
logfile_path	Indicates where run logger info is stored, if wanted
debugfile_path	Indicates where debug logger info is stored, if wanted

Problem-Specific Setup

The second block of settings goes into the application builder, it is therefore application-specific.

InverseProblemSettings	configures the initialization of the model hierarchy for MLDA
ub_model_configs	Defines the values of the config argument of calls to the UMBridge model server for each model in the hierarchy
ub_model_address	Is the address of the UMBridge server
ub_model_name	Is the name of the UMBridge server

SamplerComponentSettings	Defines the configuration of the components to be passed to the MLDA sampler, the proposal and the accept rate estimator. In this example, we utilize a Metropolis RandomWalkProposal and a StaticAcceptRateEstimator
proposal_step_width	Is the step width of the random walk proposal
proposal_covariance	Is the covariance matrix for the Gaussian proposal step
proposal_rng_seed	Is the seed initializing the RNG for proposal step sampling
accept_rates_initial_guess	Sets the initial accept rate estimates for each level in the model hierarchy, from coarse to fine
accept_rates_update_parameter	Is a factor for the decrease/increase of the accept rate estimate of a level if a proposal is accepted or rejected through an MCMC decision

InitialStateSettings	Determines how to initialize the Markov Chain for MLDA. For our application, initial samples are drawn from a Gaussian distribution with prescribed attributes
rng_seed_init	Seed for the RNG generator underlying the sampler
mean_init	Mean of the Gaussian distribution to sample from
covariance_init	Covariance of the Gaussian distribution to sample from

Postprocessor

The last block of settings is again generic, it comprises the configuration of the postprocessor.

PostprocessorSettings	Configure postprocessing
chain_directory	points to the sampled chains to postprocess
tree_directory	points to exported Markov trees for rendering, if wanted
output_data_directory	says where to store postprcessed data
visualization_directory	says where to store visualizations
acf_lag_max	determines up to which lag autocorrelation functions should be computed
